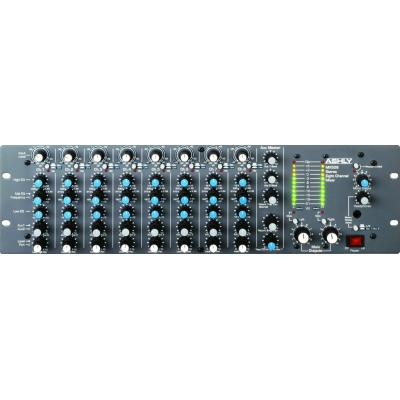

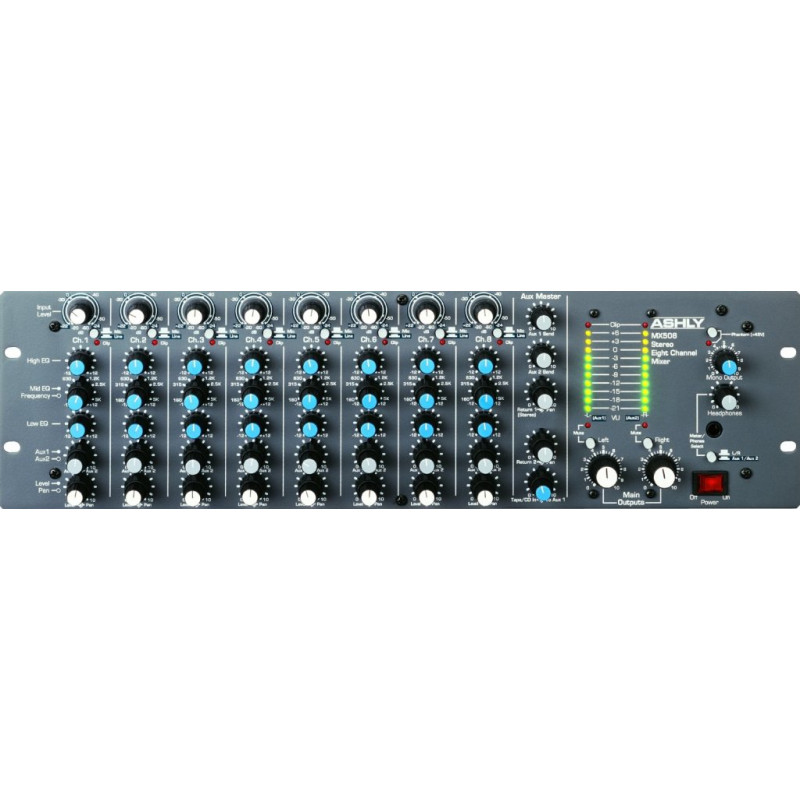

Аналоговый микшер ASHLY MX-508

ASHLY MX-508 микшерный пульт

• TOTAL HARMONIC DISTORTION: < 0.05 % @ +4 dBu, 20 Hz-20 KHz.
• < 0.05 % @ +20 dBu, 30 Hz-10 KHz.
• INTERMODULATION DISTORTION (SMPTE IM distortion): < 0.05 % @ +20 dBu.
• HUM & NOISE (20 Hz-20 KHz noise bandwidth): < -129 dBu equivalent input hum and noise.
• < -128 dBu equivalent input hum and noise w/transformer option.
• < -100 dBu residual output noise; TRS outputs, all level controls at min.
• < -90 dBu residual output noise; XLR outputs.
• < -78 dBu MASTER LEVEL at nominal, all CH. LEVEL controls at min.
• < -67 dBu MASTER LEVEL and one CH. LEVEL at nom.
• < -88 dBu AUX 1 or 2 OUT; AUX MASTER at nominal and all CH. AUX levels at min.
• < -67 dBu AUX 1 or 2 OUT; AUX MASTER and one CH. AUX at nom.
• MAXIMUM VOLTAGE GAIN MASTER: 84 ± 2dB—MIC INPUT to MASTER OUTPUT, 600 ohm load.
• 42 ± 2dB—LINE INPUT to MASTER OUTPUT, 600 ohm load.
• MAXIMUM VOLTAGE GAIN AUX SENDS: 76 ± 2dB—MIC INPUT to AUX MASTER 1 OUT, pre ch. level.
• 92 ± 2dB—MIC INPUT to AUX MASTER 2 OUT, post ch. level.
• MAXIMUM VOLTAGE GAIN SUB INS: 12 ± 1dB—SUB INPUT to MASTER OUTPUT.
• MAXIMUM VOLTAGE GAIN AUX RETURNS: 30 ± 2dB—RETURN 1 or RETURN 2 to MASTER OUTPUT.
• MAXIMUM VOLTAGE GAIN TAPE/CD IN: 34 ± 2dB—TAPE/CD INPUT to MASTER OUTPUT.
• FREQUENCY RESPONSE: +0.5/-1.0 dB 20 Hz to 20 KHz.
• EQUALIZATION: LOW ± 12dB at 70 Hz, shelving.
• MID ± 12dB peaking, 140 Hz-8 KHz.
• HIGH ± 12dB at 15 KHz, shelving.
• CROSSTALK: < -65 dB, adjacent inputs, 20 Hz-20 KHz.
• < -65 dB, MIC INPUT to MASTER OUTPUT at 1 KHz.
• VU METERS: Two 10-segment LED meters, L/R MASTER or SEND 1/2 selectable. 0 VU = + 4 dBu.
• PEAK INDICATORS: Peak CLIP indicator on each input channel and left and right outputs, illuminates 3 dB below clipping.
• PHANTOM POWER: + 48 VDC applied to all MIC INPUTS, switchable on front panel. Gradual power-up and down to eliminate "pops."
• DIMENSIONS: 19" wide x 5.25" high x 9.6" deep.
• SHIPPING WEIGHT: 22 lbs. maximum with 8 input transformer options.
• POWER REQUIREMENTS: 120 VAC nominal, 50-60 Hz, 35 watts. 93 VAC minimum (240 VAC available)

Срок гарантийного обслуживания - 1 год
